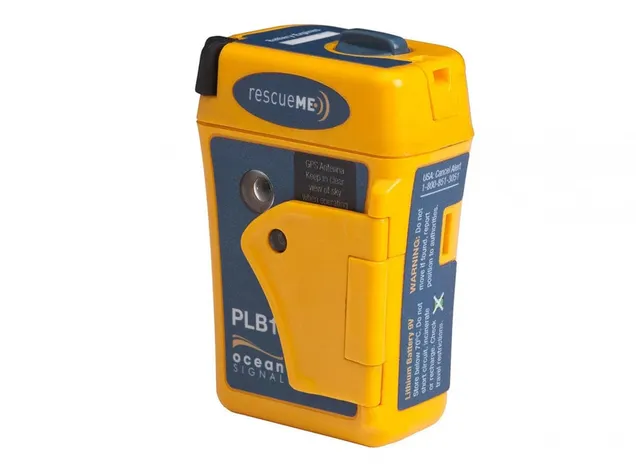

Ocean Signal RescueMe PLB1

Personal Locator Beacon

$599.99

VIP: $527.99

Login

About VIP

or 4 interest-free payments with Afterpay

Seen a lower price elsewhere?

1
add to basket

Select a colour

Please allow an extra two to three days for delivery of this item.


PLB1, the world's smallest PLB, weighing just 116g.

  • Waterproof to 15m
  • No subscription required
  • Link via satellite to Emergency Services
  • 66 channel GPS receiver
  • High intensity (1 candela) strobe
  • Fast accurate positioning
  • Easily deployed antenna
  • 7 year battery life
  • 30 percent smaller
  • Flotation pouch
  • Homing Beacon to aid final location by search and Rescue team

Wherever you are, at sea, on land, the rescueME PLB1 provides the reassurance that global emergency services can be alerted by the press of a button.

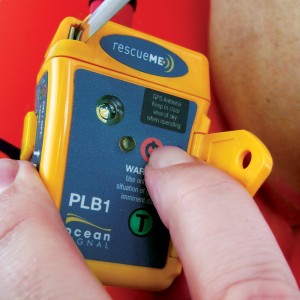

The rescueMe PLB1 can be operated with a single hand in even the most challenging situations. A simple spring loaded flap covers the activation button preventing inadvertent use.

rescueME PLB1 works with the only officially recognised worldwide dedicated search and rescue satellite network (operated by Cospas Sarsat). As this is funded by governments there are NO CHARGES to use this service.

When activated the rescueME PLB1 transmits your position and your ID to a Rescue Coordination Center via satellite link. Rescue services nearest to your are promptly notified of your emergency and regularly advised of your current location to assist prompt rescue.

These are pre-programmed to the New Zealand territory, and can be re-programmed to a new territory if you move at a small cost, via an Ocean Signal service centre or through Wild Things.

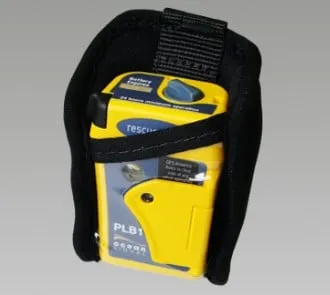

The rescueME PLB1 is provided with a flotation pouch to fit the PLB into to enable it to float, and have a replaceable battery, via an Ocean Signal service centre or through Wild Things.

406MHz Satellite Transmitter:

  • Frequency: 406.040MHz
  • Tolerance: ±1kHz
  • Output Power: 5watts (nominal)
  • Stability: 2ppb/100ms
  • Modulation: Phase ±1.1radians (peak)
  • Emission Designator: 16K0G1D
  • Encoding: Bi-phase L
  • Data Rate: 400bps
  • Duration: 520ms

121.5MHz Homing Beacon:

  • Frequency: 121.5MHz
  • Stability: ±50ppm
  • Output Power: 25-100mW PERP
  • Modulation: Swept Tone AM
  • Emission Designator: 3K20A3X
  • Modulation Depth: 85-100%
  • Sweep Range: 400Hz – 1300Hz

Low Duty Cycle Strobe Light:

  • Light Type: High intensity LED
  • Output Power: ~1candela

GPS Receiver:

  • Sensitivity Cold Start: -148dBm
  • Sensitivity Re-acquisition: -163dBm
  • Satellites channels tracked: 60
  • GPS Antenna: Microstrip patch

Battery:

  • Type: Lithium Primary
  • Chemistry: Manganese Dioxide (LiMnO2)
  • Operational Life: >24hours @ -20°C

Environmental:

  • Operating Temperature Range: -20°C to +55°C
  • Storage Temperature Range: -30°C to +70°C
  • Waterproof: 15metres at +20°C
  • Drop: 1metre @ -30°C

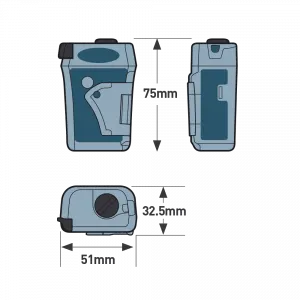

Dimensions:

  • Height: 77mm
  • Width: 51mm
  • Depth: 32.5mm
  • Weight: 116g

Standards:

  • Cospas-Sarsat: T.001 / T.007
  • ETSI: EN302 152
  • RTCM: SC11020
  • FCC: CFR47 part 95K
Ocean Signal RescueMe PLB1
Ocean Signal RescueMe PLB1
Ocean Signal RescueMe PLB1
Ocean Signal RescueMe PLB1
Ocean Signal RescueMe PLB1
Ocean Signal RescueMe PLB1
Ocean Signal
